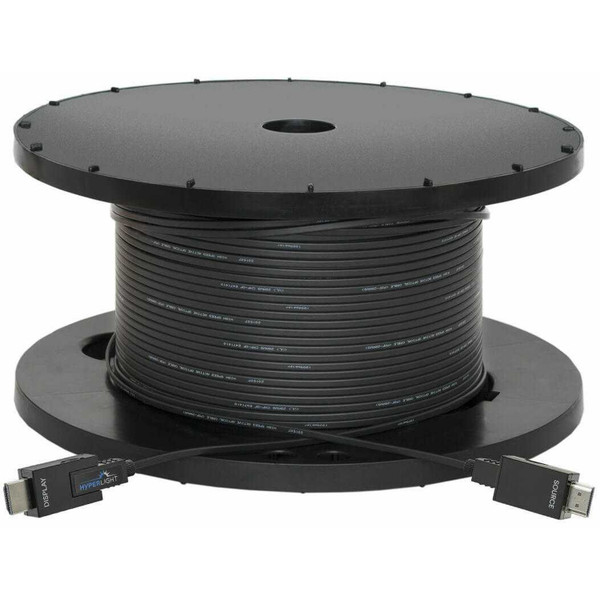

DVIGear DVI-2540-AOC Cable HDMI, HyperLight AOC, 40 meters (131.2 ft.) is a new generation of advanced Active Optical Cables (AOC) that employs cutting edge technology to deliver unprecedented resolution, performance and value. HyperLight HDMI cables provide robust features in a rugged yet compact and lightweight form factor. They are fully HDCP 2.2 and 1.4 compliant and support signals with data rates of up to 18 Gbps. These features enable HyperLight HDMI cables to support resolutions of up to 4K /60p (4:4:4) 8-bit or (4:2:2) 10-bit with cable lengths of up to 100 meters.
Easy to Install, Even in Plenum Spaces -
HyperLight cables are plenum rated (UL CMP-OF), compact, lightweight and highly flexible. Constructed using a hybrid design of 4x POF (Polyfluorinated Optical Fiber) and 6x copper wires, they are rugged yet flexible, with a minimum bend radius of only two millimeters. To minimize cable diameter, two removable HDMI docking connectors may be detached, revealing a connector cross section that measures a mere 12.4 x 10.0 millimeters. The docking connectors include a locking pin for added security. These features make the cables easy to install even in narrow conduits, as well as in plenum spaces.
Professional Environments -
HyperLight cables are designed for use in mission-critical applications where image quality and dependability are paramount. The video signals are transmitted over four optical fibers, which make them immune to interference from environmental noise. The optical transmission path provides a very low RFI / EMI profile, which allows the cables to be installed in sensitive applications with strict security requirements. In most cases, the cables draw power from the connected HDMI source, eliminating the need for an external power supply. HyperLight AOC cables are ideally suited for applications that require ultra-high resolution HDMI signals to be extended over long cable runs with flawless image quality.
DVIGear DVI-2540-AOC Cable HDMI, HyperLight AOC, 40 meters (131.2 ft.) Features:
- Lightweight, compact, flexible, plenum-rated Active Optical Cables (AOC)
- Supports HDMI with 4K/60p signals and HDCP 2.2/1.4
- Supports data rates of up to 18 Gbps total
- Extends HDMI signals with resolutions up to 4K/60p (4:4:4) 8-bit or (4:2:2) 10-bit up to 328 ft. (100 meters)
- Full range of detachable docking connectors, which can be secured with included locking pins
- Can be powered by HDMI source, or by an external USB power supply using optional powered docking connector
- Supports live DDC communications for EDID and HDCP
- Low RFI / EMI profile for sensitive applications
Why not buy this DVIGear DVI-2540-AOC Cable HDMI, HyperLight AOC, 40 meters (131.2 ft.) today?
DVIGear DVI-2540-AOC Cable HDMI, HyperLight AOC, 40 meters (131.2 ft.) Specifications:
- Performance
- Standards Compliance: HDMI 2.0, HDCP 1.4 / 2.2, UL CMP-OF (File E471410)
- Maximum Pixel Clock Frequency: 600 MHz
- Maximum Video Bit Rate: Supports up to 6.0 Gbps per lane, 18.0 Gbps total
- Maximum Color Depth: Up to 24 bits/pixel RGB (4:4:4)
- Maximum Supported Resolutions: 3840??160 @ at 60 Hz with 24 bits/pixel RGB color
- Digital Audio Support: 1-8 channels, 16 or 24-bit Linear PCM, 32-192 kHz sampling rate; maximum bitrate 36 Mbps
- Connections
- HDMI Input / HDMI Output: 19-pin HDMI Male connectors
- Power: No external power supply is required.
- DDC Support
- EDID Support: Supports live EDID communications
- HDCP Support: Supports HDCP 1.4 and HDCP 2.2
- Optical
- Optical Technology: 4x Discrete Optical Channels, 10 GHz, 850 nm
- Optical Transmitter: Tx Module: 4x 850 nm Multi-Mode VCSELs
- Optical Receiver: Rx Module: 4x GaAs PIN Photo Diodes
- Cable
- Fiber Cable Type: Hybrid cable with 4x POF (Polyfluorinated Optical Fiber) and 6x copper members
- Cable Jacket: Plenum Rated, Black
- Standard Lengths (meters): 5, 7.5, 10, 12.5, 15, 20, 25, 30, 40, 50, 60, 75, 80, 90, 100
- Standard Lengths (feet): 16.4, 24.6, 32.8, 41.0, 49.2, 65.6, 82.0, 98.4, 131.2, 164.0, 196.9, 246.1, 262.5, 295.3, 328.1
- Maximum Cable Length: 328 ft. / 100 meters
- Mechanical - Cable
- Product Weight: Varies with length
- Maximum Tensile Load: > 200N
- Minimum Bend Radius: 2 mm (fiber and jacket)
- Crush Resistance: > 500N
- Cable Connector (L x W x H): Male Micro HDMI Type D with pulling eye, 1.67" x 0.49" x 0.31" (42.3 mm x 12.4 mm x 8.0 mm)
- Cable Outside Diameter (W x H): 0.2" x 0.1" (5.1 mm x 2.9 mm)
- Mechanical - Tx and Rx Docking Plugs
- Docking Connectors: A complete range of DVI, HDMI and DisplayPort docking connectors is available
- Construction: High-impact plastic enclosures with removable locking pin
- Environmental
- Operating Temperature: -4˚ to +158˚ F (-20˚ to +70˚ C)
- Storage Temperature: -4˚ to +185˚ F (-20˚ to +85˚ C)
- Operating / Storage Humidity: 5% to 85% (non-condensing)
- Power Requirements
- Power Source: Powered from source device
- Power Consumption (typical): < 0.235 watt / 47 mA
- Regulatory Approvals
- Fiber Optic Cable: FCC, UL, CE, RoHS
- Warranty
- Limited Warranty: 3 Years
- Model Number
- DVI-25xxx-AOC: HDMI HyperLight Active Optical Cable ( xxx = length in meters )
- Accessories
- Included: 1x Quick Start Guide
- Tx and Rx Passive or Active HDMI docking connectors (dependent on cable length).
